Starting System — Pinpoint Test(S) — Pinpoint Test A : Engine Does Not Crank

Starting System - 2.3L EcoBoost (231kW &314PS)

Source configuration appliesSource reference 6,311HTML edition
← Chapter contentsManual collection

Positive Lead

Measurement / Action

Negative Lead

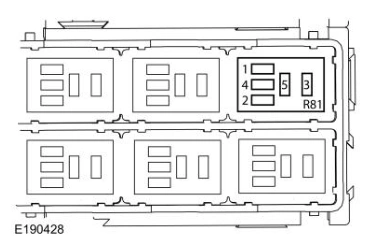

Starting System — original illustration 1, reference 6311Original colors & callouts · Select to enlarge
Starting System — original illustration 2, reference 6311Original colors & callouts · Select to enlarge

BJB starter relay pin 3 BJB starter relay pin 5

Did the starter engage and the engine crank?

Yes

INSTALL a new starter relay.

No

GO to A16

A16 CHECK THE BATTERY GROUND CABLES

Measure:

Positive Lead

Measurement / Action

Negative Lead

Ground G106

Ground G108

Starting System — original illustration 3, reference 6311Original colors & callouts · Select to enlarge
Starting System — original illustration 4, reference 6311Original colors & callouts · Select to enlarge

Are the voltages greater than 11 volts?

Yes

GO to A17
