Starting System — Pinpoint Test(S) — Pinpoint Test A : Engine Does Not Crank — Starting System - 2.3L EcoBoost (231kW &314PS) · Reference 6312

No	CLEAN or INSTALL new negative battery cables as necessary. REFER to: Battery Cables - 2.3L EcoBoost (201kW/273PS) .

A17 CHECK THE STARTER MOTOR GROUND

Measure:

Positive Lead

Measurement / Action

Negative Lead

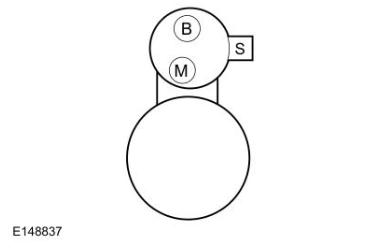

Starting System — original illustration 2, reference 6312Original colors & callouts · Select to enlarge

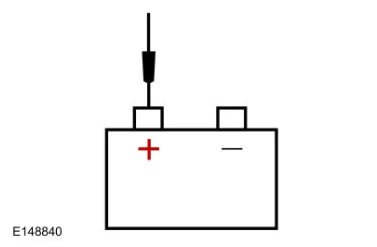

Starting System — original illustration 1, reference 6312Original colors & callouts · Select to enlarge

Starter motor case

Is the voltage greater than 11 volts?

Yes	GO to A18

No	CLEAN the starter motor mounting flange and MAKE SURE the starter motor is correctly mounted. REFER to: Starter Motor .

A18 CHECK THE VOLTAGE TO THE STARTER MOTOR

Measure:

Positive Lead	Measurement / Action	Negative Lead
C197A-1 ("B" terminal)		Ground

Is the voltage greater than 11 volts?

Yes	GO to A19

No	INSTALL a new positive battery cable. REFER to: Battery Cables - 2.3L EcoBoost (201kW/273PS) .

A19 CHECK THE STARTER MOTOR FOR CORRECT OPERATION

Perform Starter Motor - Positive Circuit Test in Component Test(s) .

Was an obvious cause found?
