Service Manual: ELECTRONIC ENGINE CONTROLS - 3.7L DURATEC (227KW/301PS)

DESCRIPTION AND OPERATION > ELECTRONIC ENGINE CONTROLS - COMPONENT

LOCATION

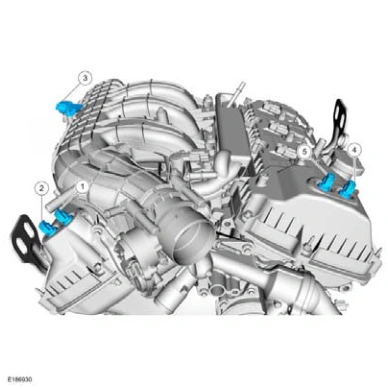

Electronic Engine Controls- Front

Electronic Engine Controls - Component Location — original illustration 1, reference 6332Original colors & callouts · Select to enlarge

Item

Description

1

RH intake VCT oil control solenoid

2

RH exhaust VCT oil control solenoid

3

MAPT sensor

4

LH exhaust VCT oil control solenoid

5

LH intake VCT oil control solenoid

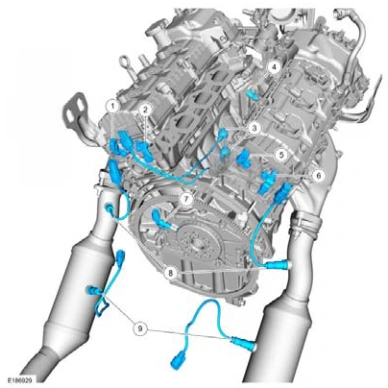

Electronic Engine Controls - Rear

Electronic Engine Controls - Component Location — original illustration 2, reference 6332Original colors & callouts · Select to enlarge
