Item | Description |
1 | LH exhaust CMP sensor |
2 | LH intake CMP sensor |
3 | KS |
4 | CHT sensor |
5 | RH intake CMP sensor |
6 | RH exhaust CMP sensor |
7 | CKP sensor |
8 | HO2S |
9 | Catalyst monitor sensor |

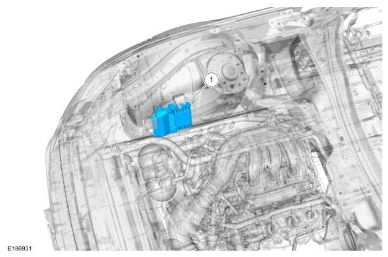

Powertrain Control Module (PCM)
Item | Description |
1 | PCM |
DESCRIPTION AND OPERATION > ELECTRONIC ENGINE CONTROLS - OVERVIEW
Authoring Template
DESCRIPTION AND OPERATION > ELECTRONIC ENGINE CONTROLS - OVERVIEW >
OVERVIEW
The EEC system provides optimum control of the engine through the enhanced capability of the PCM. The EEC system also has an OBD monitoring system with features and functions to meet federal regulations on exhaust emissions.
The EEC system has two major divisions: hardware and software. The hardware includes the PCM, sensors, switches, actuators, solenoids, and interconnecting terminals. The software in the PCM provides the strategy control for outputs (engine hardware) based on the values of the inputs to the PCM.
