Camshaft Position (Cmp) Sensor — Removal — Electronic Engine Controls - 3.7L Duratec (227kW & 301PS) · Reference 6357

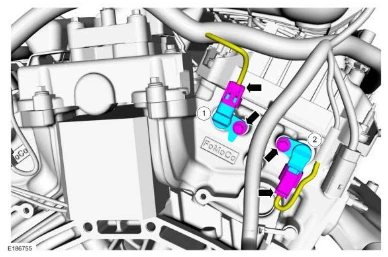

Camshaft Position (Cmp) Sensor — original illustration 1, reference 6357Original colors & callouts · Select to enlarge

LH (left-hand) Camshaft Position (CMP) Sensors

1. Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Torque

: 89 lb.in (10 Nm)

2. Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Torque

: 89 lb.in (10 Nm)

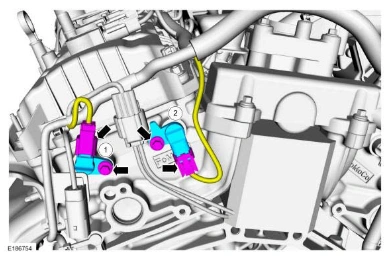

Camshaft Position (Cmp) Sensor — original illustration 2, reference 6357Original colors & callouts · Select to enlarge

Ford_Mustang_all_2015-2017.pdf · source reference 6357

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
