Catalyst Monitor Sensor — Installation

Electronic Engine Controls - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 6,359HTML edition
← Chapter contentsManual collection

Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Material

: Penetrating and Lock Lubricant / XL-1

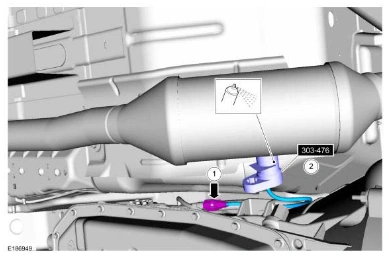

Catalyst Monitor Sensor — original illustration 1, reference 6359Original colors & callouts · Select to enlarge

Left hand (LH) Catalyst monitor sensor

3.

1. Disconnect the catalyst monitor sensor electrical connector.

2. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Material

: Penetrating and Lock Lubricant / XL-1

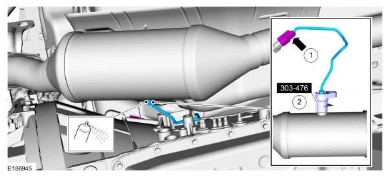

Catalyst Monitor Sensor — original illustration 2, reference 6359Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CATALYST MONITOR SENSOR > INSTALLATION

Left hand (LH) Catalyst monitor sensor

1.

1. Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the illustration below.
