Catalyst Monitor Sensor — Installation — Electronic Engine Controls - 3.7L Duratec (227kW & 301PS) · Reference 6361

2. Connect the catalyst monitor sensor electrical connector.

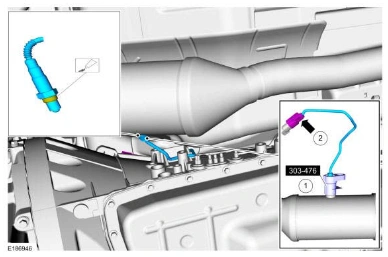

Catalyst Monitor Sensor — original illustration 1, reference 6361Original colors & callouts · Select to enlarge

Right hand (RH) Catalyst monitor sensor

1. Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the illustration below.

Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Material

: High Temperature Nickel Anti-Seize Lubricant / XL-2

Torque

: 35 lb.ft (48 Nm)
