Crankshaft Position (Ckp) Sensor — — Electronic Engine Controls - 3.7L Duratec (227kW & 301PS) · Reference 6364

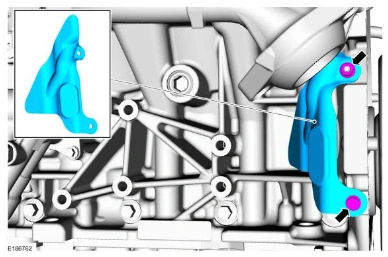

2. Remove the nut, bolt and the heat shield.

Crankshaft Position (Ckp) Sensor — original illustration 1, reference 6364Original colors & callouts · Select to enlarge

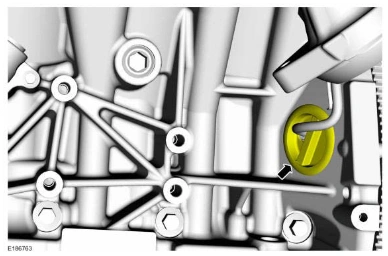

3. Position aside the CKP sensor access plug.

Crankshaft Position (Ckp) Sensor — original illustration 2, reference 6364Original colors & callouts · Select to enlarge

NOTE: Remove the bolt and the CKP sensor from the bell housing before disconnecting the electrical connector to prevent the CKP sensor from falling in the bell housing.

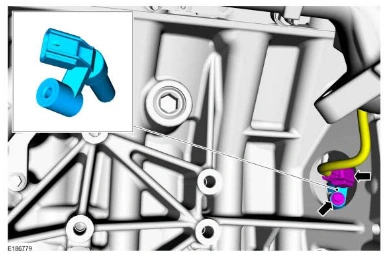

4. Remove the bolt, disconnect the CKP sensor electrical connector and the sensor.

Crankshaft Position (Ckp) Sensor — original illustration 3, reference 6364Original colors & callouts · Select to enlarge
