4. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.

REMOVAL AND INSTALLATION > CYLINDER HEAD TEMPERATURE (CHT) SENSOR >

REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the lower intake manifold. Refer to: LOWER INTAKE MANIFOLD .

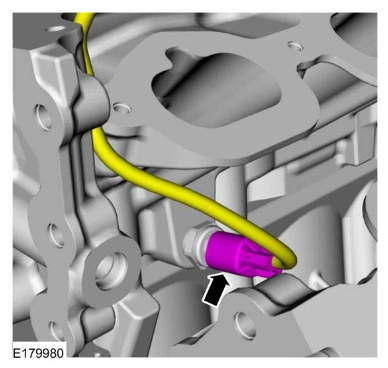

2. Disconnect the CHT sensor electrical connector.

Removal — original illustration 1, reference 6366Original colors & callouts · Select to enlarge

NOTE: Do not reuse the CHT sensor, install a new sensor.

3. Remove and discard the CHT sensor.

Torque

: 89 lb.in (10 Nm)
