Removal

Electronic Engine Controls - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 6,363HTML edition
← Chapter contentsManual collection
Removal — original illustration 1, reference 6363Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CLUTCH PEDAL POSITION (CPP) SWITCH >

REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

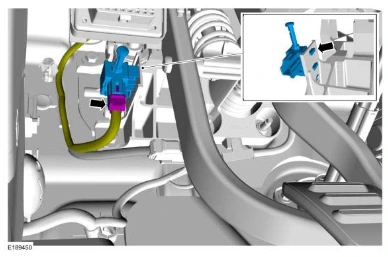

1. Disconnect the electrical connector and remove CPP switch from the bracket.

Removal — original illustration 2, reference 6363Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CLUTCH PEDAL POSITION (CPP) SWITCH >

INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > CRANKSHAFT POSITION (CKP) SENSOR >

REMOVAL

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
