INSTALLATION

1. Connect the CKP sensor electrical connector, install the sensor and the bolt.

Torque

: 89 lb.in (10 Nm)

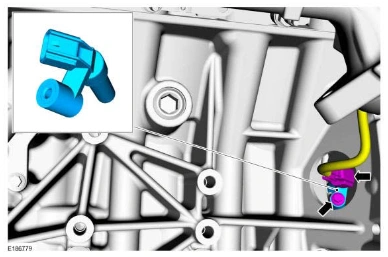

Installation — original illustration 1, reference 6365Original colors & callouts · Select to enlarge

2. Position back the CKP sensor access plug.

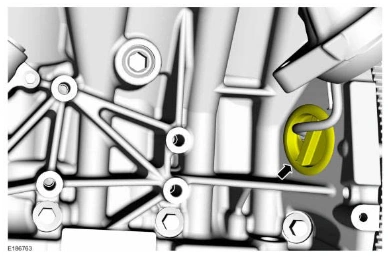

Installation — original illustration 2, reference 6365Original colors & callouts · Select to enlarge

3. Install the heat shield, nut and bolt.

Torque

: 97 lb.in (11 Nm)

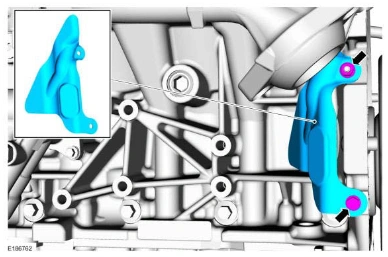

Installation — original illustration 3, reference 6365Original colors & callouts · Select to enlarge
