Heated Oxygen Sensor (Ho2s) — Removal

Electronic Engine Controls - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 6,368HTML edition
← Chapter contentsManual collection

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

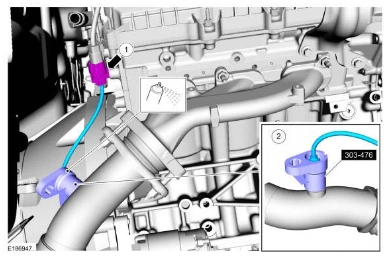

RH (right-hand) Heated Oxygen Sensor (HO2S)

2.

1. Disconnect the HO2S electrical connector.

2. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Material

: Penetrating and Lock Lubricant / XL-1

Heated Oxygen Sensor (Ho2s) — original illustration 1, reference 6368Original colors & callouts · Select to enlarge

LH (left-hand) Heated Oxygen Sensor (HO2S)

3.

1. Disconnect the HO2S electrical connector.

2. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Material

: Penetrating and Lock Lubricant / XL-1
