Installation

Electronic Engine Controls - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 6,369HTML edition
← Chapter contentsManual collection

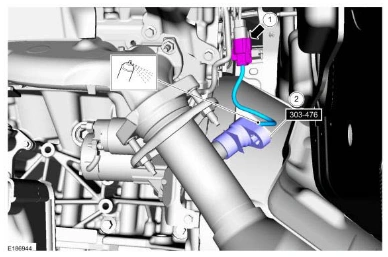

Installation — original illustration 1, reference 6369Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > HEATED OXYGEN SENSOR (HO2S) >

INSTALLATION

LH (left-hand) Heated Oxygen Sensor (HO2S)

1.

1. Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the illustration below.

Use Special Service Tool: 303-476 (T94P-9472-A)Socket, Exhaust Gas Oxygen Sensor.

Material

: High Temperature Nickel Anti-Seize Lubricant / XL-2

Torque

: 35 lb.ft (48 Nm)
