Service Manual: EVAPORATIVE EMISSIONS - 3.7L DURATEC (227KW/301PS)

DESCRIPTION AND OPERATION > EVAPORATIVE EMISSIONS - OVERVIEW >

OVERVIEW

The EVAP system prevents hydrocarbon emissions from entering the atmosphere by storing fuel vapors and routing the vapors to the engine to be consumed during normal engine operation.

The EVAP system consists of:

EVAP canister

EVAP canister purge valve

EVAP canister vent solenoid

Fuel Tank Pressure (FTP) sensor and tube

Easy Fuel (capless) fuel tank filler pipe

DESCRIPTION AND OPERATION > EVAPORATIVE EMISSIONS - SYSTEM OPERATION

AND COMPONENT DESCRIPTION

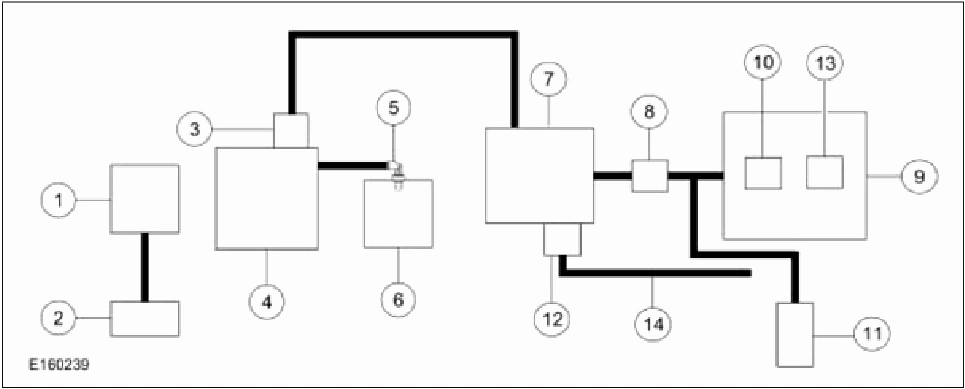

Fig 1: Evaporative Emissions - System Diagram

Evaporative Emissions - Overview — original illustration 1, reference 7377Original colors & callouts · Select to enlarge

Courtesy of FORD MOTOR CO.

Item	Description
1	LH Valve cover
2	Air Cleaner (ACL) outlet pipe
3	EVAP canister purge valve
