Installation

Evaporative Emissions - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 7,389HTML edition
← Chapter contentsManual collection

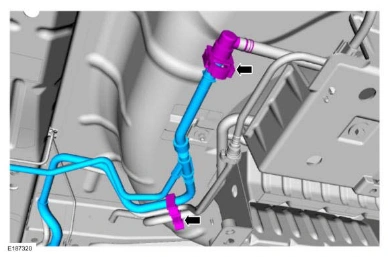

7. Disconnect the quick release coupling and routing clips. Remove the fuel tank pressure sensor and tube. Refer to: QUICK RELEASE COUPLING .

Installation — original illustration 1, reference 7389Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FUEL TANK PRESSURE SENSOR AND TUBE >

INSTALLATION

1. To install, reverse the removal procedure.

Ford_Mustang_all_2015-2017.pdf · source reference 7389
