Removal — Evaporative Emissions - 3.7L Duratec (227kW & 301PS) · Reference 7388

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

3. Remove the rear subframe. Refer to: Rear Subframe .

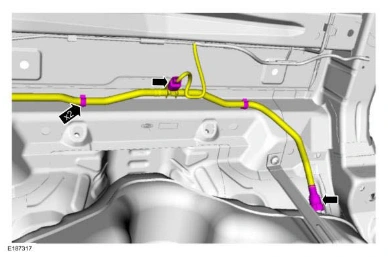

4. Disconnect the quick release coupling, routing clips and the fuel tank pressure sensor electrical connector. Refer to: QUICK RELEASE COUPLING .

Removal — original illustration 1, reference 7388Original colors & callouts · Select to enlarge

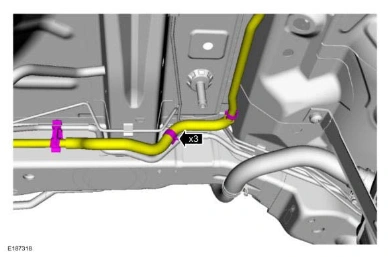

5. Disconnect the routing clips.

Removal — original illustration 2, reference 7388Original colors & callouts · Select to enlarge

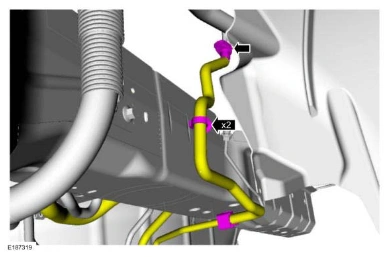

6. Disconnect the quick release coupling and routing clips. Refer to: QUICK RELEASE COUPLING .

Removal — original illustration 3, reference 7388Original colors & callouts · Select to enlarge
