Evaporative Emission Canister Ventilation Filter — Installation — Evaporative Emissions - 3.7L Duratec (227kW & 301PS) · Reference 7385

: 62 lb.in (7 Nm)

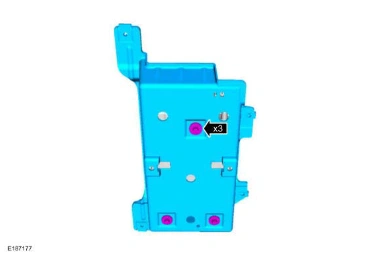

Evaporative Emission Canister Ventilation Filter — original illustration 1, reference 7385Original colors & callouts · Select to enlarge

4. If necessary, remove the EVAP canister solenoid.

Evaporative Emission Canister Ventilation Filter — original illustration 2, reference 7385Original colors & callouts · Select to enlarge

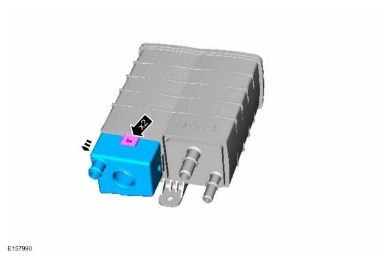

5. Release the tabs and remove EVAP canister ventilation filter.

Evaporative Emission Canister Ventilation Filter — original illustration 3, reference 7385Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > EVAPORATIVE EMISSION CANISTER VENTILATION

FILTER > INSTALLATION

1. To install, reverse the removal procedure.
