Evaporative Emission Canister Vent Solenoid — Removal — Evaporative Emissions - 3.7L Duratec (227kW & 301PS) · Reference 7386

REMOVAL AND INSTALLATION > EVAPORATIVE EMISSION CANISTER VENT

SOLENOID > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the EVAP canister. Refer to: Evaporative Emission Canister .

2. Disconnect the EVAP canister solenoid electrical connector.

Evaporative Emission Canister Vent Solenoid — original illustration 1, reference 7386Original colors & callouts · Select to enlarge

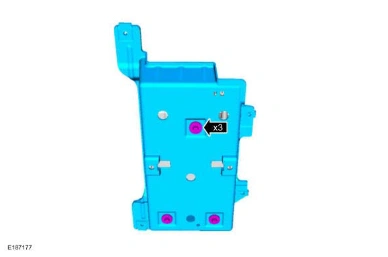

3. Remove the bolts and EVAP canister shield.

Torque

: 62 lb.in (7 Nm)

Evaporative Emission Canister Vent Solenoid — original illustration 2, reference 7386Original colors & callouts · Select to enlarge

4. Remove the EVAP canister solenoid.
