Evaporative Emission Canister Ventilation Filter — Removal — Evaporative Emissions - 3.7L Duratec (227kW & 301PS) · Reference 7384

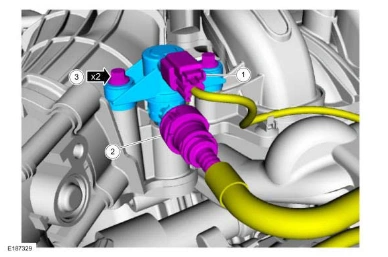

Evaporative Emission Canister Ventilation Filter — original illustration 1, reference 7384Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > EVAPORATIVE EMISSION CANISTER PURGE

VALVE > INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > EVAPORATIVE EMISSION CANISTER VENTILATION

FILTER > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the EVAP canister. Refer to: Evaporative Emission Canister .

2. Disconnect the EVAP canister solenoid electrical connector.

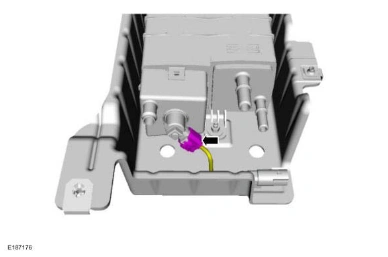

Evaporative Emission Canister Ventilation Filter — original illustration 2, reference 7384Original colors & callouts · Select to enlarge

3. Remove the bolts and EVAP canister shield.

Torque
