Evaporative Emission Canister — Removal

Evaporative Emissions - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 7,381HTML edition
← Chapter contentsManual collection
Evaporative Emission Canister — original illustration 1, reference 7381Original colors & callouts · Select to enlarge

4. Remove the bolts, pin type retainers and bracket.

Torque

: 44 lb.in (5 Nm)

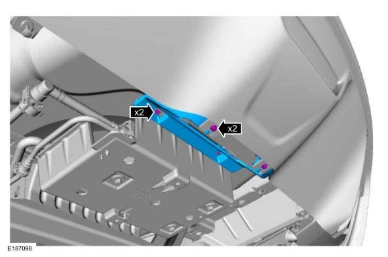

Evaporative Emission Canister — original illustration 2, reference 7381Original colors & callouts · Select to enlarge

5. Remove the bolts.

Torque

: 62 lb.in (7 Nm)

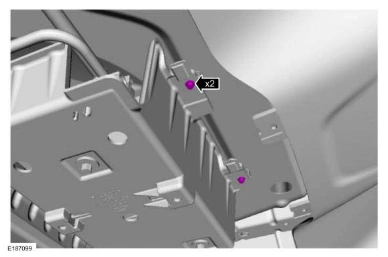

Evaporative Emission Canister — original illustration 3, reference 7381Original colors & callouts · Select to enlarge

6. Remove the nuts and lower the EVAP canister.

Torque

Ford_Mustang_all_2015-2017.pdf · source reference 7381
