Evaporative Emission Canister Purge Valve — Rem Oval

Evaporative Emissions - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 7,382HTML edition
← Chapter contentsManual collection

: 62 lb.in (7 Nm)

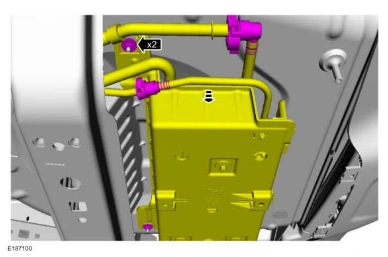

Evaporative Emission Canister Purge Valve — original illustration 1, reference 7382Original colors & callouts · Select to enlarge

7.

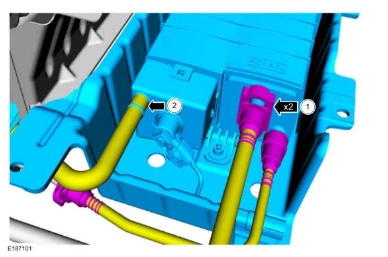

1. Disconnect the EVAP canister quick connect couplings. Refer to: QUICK RELEASE COUPLING .

2. Disconnect the vent hose and remove the EVAP canister.

Evaporative Emission Canister Purge Valve — original illustration 2, reference 7382Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > EVAPORATIVE EMISSION CANISTER >

INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > EVAPORATIVE EMISSION CANISTER PURGE

VALVE > REMOVAL

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type
