Ford Mustang

Service Manual: FUEL CHARGING AND CONTROLS - 3.7L DURATEC (227KW/301PS)

DESCRIPTION AND OPERATION > FUEL CHARGING AND CONTROLS - COMPONENT

LOCATION

3.7L Duratec

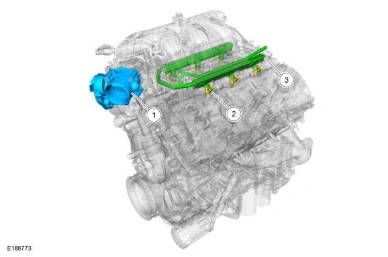

Fuel Charging And Controls - Component Location — original illustration 1, reference 7390Original colors & callouts · Select to enlarge

Item

Description

1

Throttle Body (TB)

2

Fuel injector

3

Fuel rail

FPDM

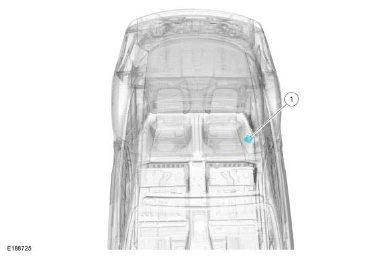

Fuel Charging And Controls - Component Location — original illustration 2, reference 7390Original colors & callouts · Select to enlarge

Item

Description

1

FPDM. (The FPDM is located beneath the rear seat cushion on the LH side).

DESCRIPTION AND OPERATION > FUEL CHARGING AND CONTROLS - SYSTEM

OPERATION AND COMPONENT DESCRIPTION > SYSTEM OPERATION

For System Operation, Refer to ENGINE CONTROLS - DESCRIPTION & OPERATION (EXCEPT DIESEL & HYBRID) . .
