Fuel Rail — Removal — Fuel Charging And Controls - 3.7L Duratec (227kW & 301PS) · Reference 7392

Fuel Rail — original illustration 1, reference 7392Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FUEL PUMP DRIVER MODULE (FPDM) >

INSTALLATION

1. Install the FPDM, then install and tighten the FPDM retaining nuts.

Torque

: 44 lb.in (5 Nm)

2. Connect the FPDM electrical connector.

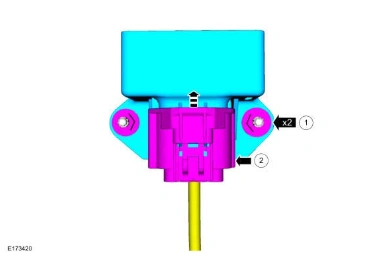

Fuel Rail — original illustration 2, reference 7392Original colors & callouts · Select to enlarge

2. Install the rear seat cushion. Refer to: Rear Seat Cushion .

REMOVAL AND INSTALLATION > FUEL RAIL > REMOVAL

1. Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .
