Fuel Rail — Installation — Fuel Charging And Controls - 3.7L Duratec (227kW & 301PS) · Reference 7394

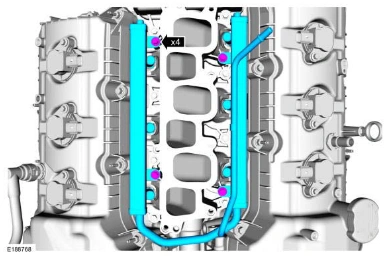

Remove the fuel rail retaining bolts and then remove the fuel rail.

Fuel Rail — original illustration 1, reference 7394Original colors & callouts · Select to enlarge

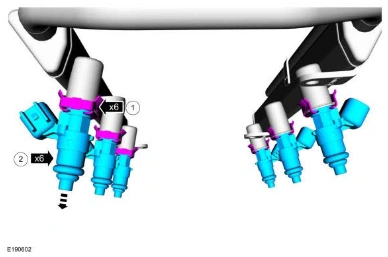

1. Remove the fuel injector retaining clips.

2. Remove the fuel injectors from the fuel rail.

Fuel Rail — original illustration 2, reference 7394Original colors & callouts · Select to enlarge

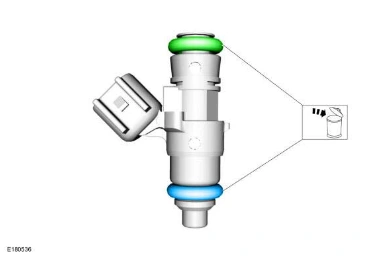

9. Remove and discard all of the fuel injector O-ring seals.

Fuel Rail — original illustration 3, reference 7394Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FUEL RAIL > INSTALLATION
