Throttle Body — Removal — Fuel Charging And Controls - 3.7L Duratec (227kW & 301PS) · Reference 7397

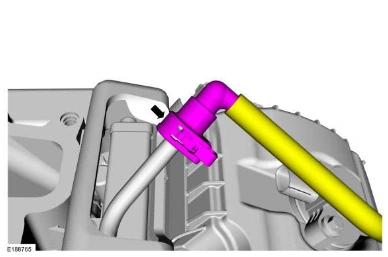

Throttle Body — original illustration 1, reference 7397Original colors & callouts · Select to enlarge

7. Install the upper intake manifold. Refer to: UPPER INTAKE MANIFOLD .

8. Reconnect the battery. Refer to: Battery Disconnect and Connect .

9. Pressurize the fuel system. Refer to: FUEL SYSTEM PRESSURE RELEASE .

REMOVAL AND INSTALLATION > THROTTLE BODY > REMOVAL

1. Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .

2. Release the brake vacuum hose retainer and the Throttle Body (TB) electrical connector wire harness retainer from the Throttle Body (TB). Disconnect the Throttle Body (TB) electrical connector.

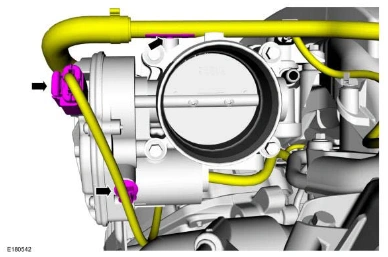

Throttle Body — original illustration 2, reference 7397Original colors & callouts · Select to enlarge

3. Remove the Throttle Body (TB) retaining bolts and then remove the Throttle Body (TB).

Ford_Mustang_all_2015-2017.pdf · source reference 7397
