Throttle Body — Installation — Fuel Charging And Controls - 3.7L Duratec (227kW & 301PS) · Reference 7399

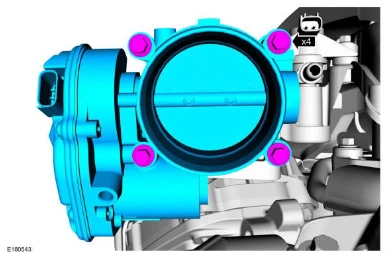

Stage 1: 89 lb.in (10 Nm)

Stage 2: 90°

Throttle Body — original illustration 1, reference 7399Original colors & callouts · Select to enlarge

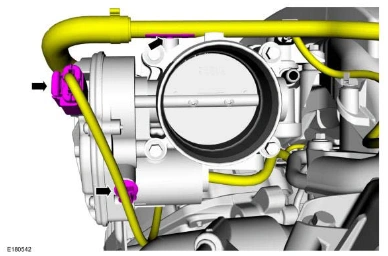

3. Connect the Throttle Body (TB) electrical connector. Attach the brake vacuum hose retainer and the Throttle Body (TB) electrical connector wire harness retainer to the Throttle Body (TB).

Throttle Body — original illustration 2, reference 7399Original colors & callouts · Select to enlarge

4. Install the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .
