Fuel Rail — Installation

Fuel Charging And Controls - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 7,396HTML edition
← Chapter contentsManual collection
Fuel Rail — original illustration 1, reference 7396Original colors & callouts · Select to enlarge

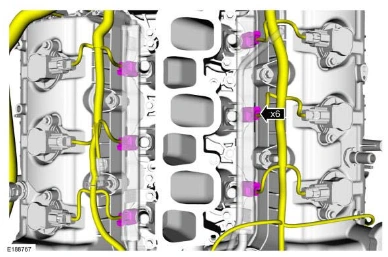

4. Connect the fuel injector electrical connectors.

Fuel Rail — original illustration 2, reference 7396Original colors & callouts · Select to enlarge

5.

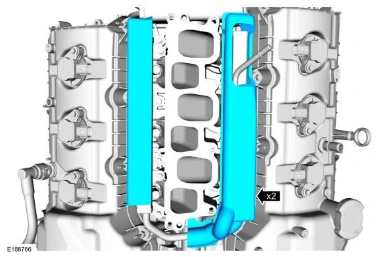

1. Install the RH and LH fuel rail insulators.

Fuel Rail — original illustration 3, reference 7396Original colors & callouts · Select to enlarge

6. Connect the fuel rail fuel feed tube. Refer to: QUICK RELEASE COUPLING .

Ford_Mustang_all_2015-2017.pdf · source reference 7396
