Fuel Rail — Removal — Fuel Charging And Controls - 3.7L Duratec (227kW & 301PS) · Reference 7393

2. Disconnect the battery. Refer to: Battery Disconnect and Connect .

3. Remove the upper intake manifold. Refer to: UPPER INTAKE MANIFOLD .

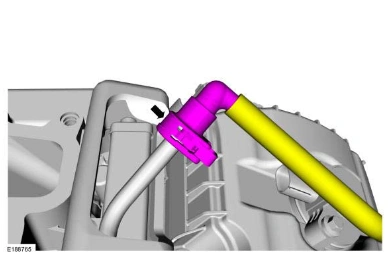

4. Disconnect the fuel rail fuel feed tube. Refer to: QUICK RELEASE COUPLING .

Fuel Rail — original illustration 1, reference 7393Original colors & callouts · Select to enlarge

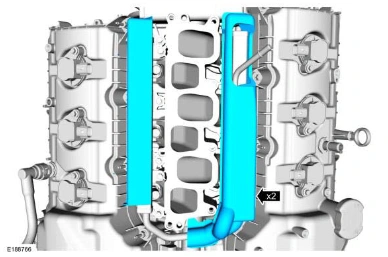

5. Remove the RH and LH fuel rail insulators.

Fuel Rail — original illustration 2, reference 7393Original colors & callouts · Select to enlarge

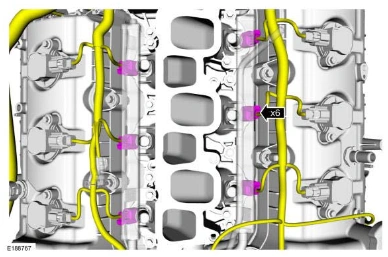

6. Disconnect the fuel injector electrical connectors.

Fuel Rail — original illustration 3, reference 7393Original colors & callouts · Select to enlarge
