Throttle Body — Installation — Fuel Charging And Controls - 3.7L Duratec (227kW & 301PS) · Reference 7398

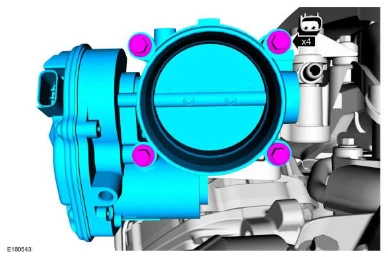

Throttle Body — original illustration 1, reference 7398Original colors & callouts · Select to enlarge

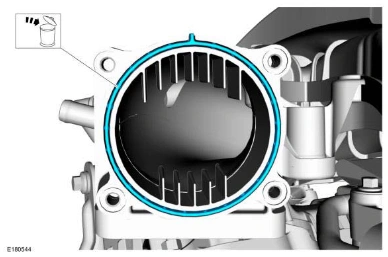

4. Remove and discard the Throttle Body (TB) gasket.

Throttle Body — original illustration 2, reference 7398Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > THROTTLE BODY > INSTALLATION

NOTE: Make sure that the mating faces are clean and free of foreign material.

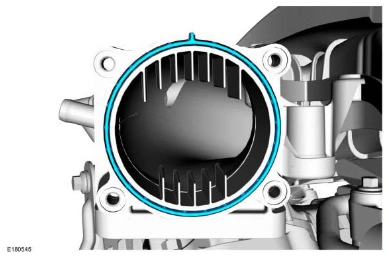

1. Install a new Throttle Body (TB) gasket.

Throttle Body — original illustration 3, reference 7398Original colors & callouts · Select to enlarge

2. Install the Throttle Body (TB), then install and tighten the Throttle Body (TB) retaining bolts.

Torque:
