Item | Description |
1 | Low Current |
2 | Low Exhaust |
3 | SREG Circuit Fluid (Supply) |
4 | High Pressure To VFS5 Hydraulic Circuit |
5 | High Current |
6 | High Exhaust |
7 | SREG Circuit Fluid (Supply) |
8 | Low Pressure To VFS5 Hydraulic Circuit |

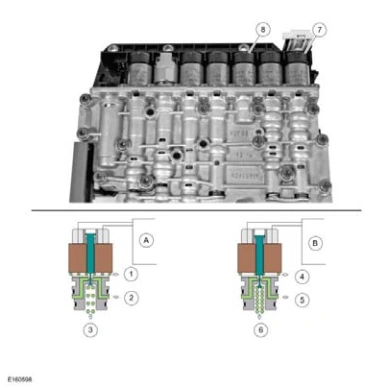

Shift Solenoid A (SSA), Shift Solenoid B (SSB), Shift Solenoid C (SSC) and Shift Solenoid D (SSD)
Item | Description |
A | Low Current |
B | High Current |
1 | High Exhaust |
2 | SREG Circuit Fluid (Supply) |
3 | Low Pressure To Clutch Regulator And Latch Valves |
4 | Low Exhaust |
5 | SREG Circuit Fluid (Supply) |
6 | High Pressure To Clutch Regulator And Latch Valves |
7 | SSA) Variable Force Solenoid (VFS) |
8 | SSC VFS |
