Transmission Description - System Operation And Component Description

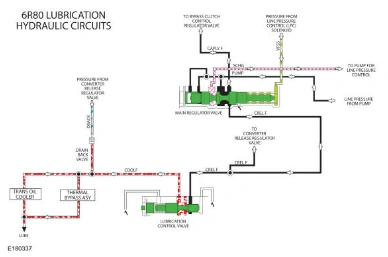

When the TCC is applied, the lubrication control valve supplies the transmission lubrication through the COOLF circuit to the LUBE circuit.

When the TCC is released, return fluid from the torque converter is supplied to the LUBE circuit through the CAPLY, CAPLY EX and DBACK circuits.

Pressure in the LUBE circuit either circulates through the thermal bypass valve when TFT is below operating temperature or through the transmission fluid cooler when the transmission fluid is at or above operating temperature. Return fluid from the thermal bypass valve or the transmission fluid cooler enters the input shaft through the pump assembly and flows through passages in the input shaft, intermediate shaft and output shaft to provide lubrication for the transmission.

Transmission Electronic Control System

The PCM control the electronic functions of this transmission. A plastic molded leadframe is bolted to the main control assembly. The leadframe contains the TSS, OSS, TFT and TR sensors.

The PCM receives input signals from engine and transmission sensors and uses these inputs to control line pressure, shift time, TCC, and shift solenoids. The PCM also provides power and ground for the reverse lamp relay coil and provides a PARK/NEUTRAL start enable signal.

The following is a list of direct engine and driver inputs to the PCM along with module information from the vehicle CAN:

Engine speed

Engine torque

ECT

Engine Oil Temperature (EOT)

TP

APP

BPP

ABS wheel speed

Traction Control (ATC) status

The PCM also:

Monitors inputs and outputs for the presence of faults.
