Solenoid output pressure from the LPC solenoid to VFS5 the main regulator valve to control line pressure. Solenoid output pressure from the TCC solenoid to the bypass clutch control regulator valve and the VFS6 converter release regulator valve to control the TCC.
Original table alignment retained · Scroll horizontally if needed

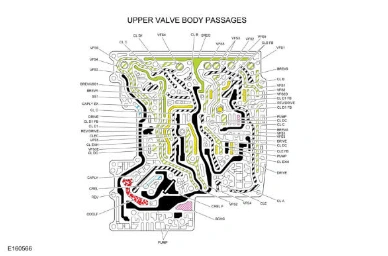

Valve Body Maps for Solenoid and Line Pressure

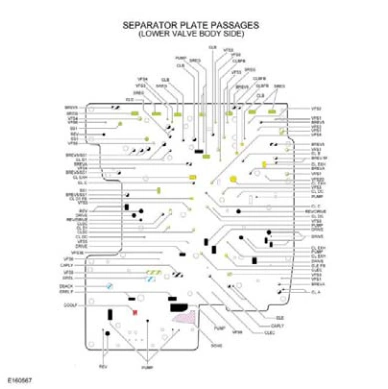

Solenoid Body Hydraulic Passages
