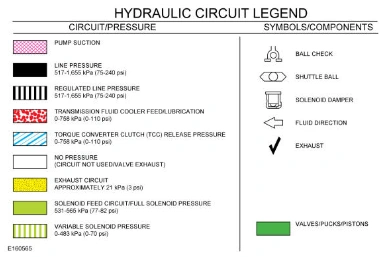

Hydraulic Circuit Identification Chart
Circuit Name | Description |
BREVA | BREV5 pressure from the drive enable valve to the clutch A regulator valve. |
BREV5 | BREV 5F pressure from the clutch A latch valve to the drive enable valve and the No. 2 shuttle ball. |
BREV 5F | Regulated line pressure from the CL B circuit directed to the A clutch latch valve by the B clutch latch valve. |
BREV5/SS1 | BREV5 or SS1 pressure from the No. 2 shuttle ball to the solenoid multiplex valve. |
CAPLY | Apply circuit to the torque converter, also the return circuit during TCC release. |
CAPLY EX | TCC releases pressure from the bypass clutch control regulator valve to the converter release regulator valve. |
CAPLY F | Line pressure from the PUMP circuit directed to the bypass clutch control regulator valve by the main regulator valve. |
CL A | Regulated line pressure from the clutch A regulator valve to the clutch A latch valve and the forward (A) clutch to apply the clutch. |
CLA FB | Regulated line pressure from the clutch A latch valve that feeds back to the clutch A regulator valve. |
CL B | Regulated line pressure from the clutch B regulator valve to the clutch B latch valve and the direct (B) clutch to apply the clutch. |
CLB FB | Regulated line pressure from the clutch B latch valve that feeds back to the clutch B regulator valve. |
