Transmission Description - System Operation And Component Description

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,670HTML edition

OPERATION AND COMPONENT DESCRIPTION

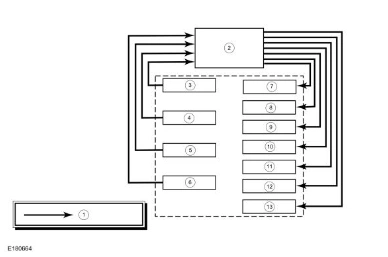

System Diagram

Transmission Description - Overview — original illustration 1, reference 8670Original colors & callouts · Select to enlarge

Item	Description
1	Hardwire Connection
2	PCM
3	TFT
4	TR
5	TSS
6	OSS
7	LPC
8	SSA
9	SSB
10	SSC
11	SSD
12	SSE
13	TCC

Network Message Chart

Broadcast Message	Originating Module	Message Purpose
Engine Speed	PCM	Directly affects shift scheduling, TCC control, line pressure and transmission diagnostics. Indirectly affects shift pressure control.
Engine torque estimate	PCM	Directly affects shift pressure control, TCC control and transmission diagnostics. Indirectly affects shift scheduling and TCC scheduling.
APP	PCM	Directly affects shift scheduling, TCC scheduling and transmission diagnostics. Indirectly affects TCC control and shift control.
