Transmission Description - System Operation And Component Description — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8669

When a new solenoid body is installed, a new solenoid body strategy file is downloaded into the PCM. A replacement solenoid body tag is supplied with the new solenoid body which contains the 13-digit solenoid body strategy and the 12-digit solenoid body identification. The new tag is placed over the original solenoid body tag.

DESCRIPTION AND OPERATION > TRANSMISSION DESCRIPTION - OVERVIEW >

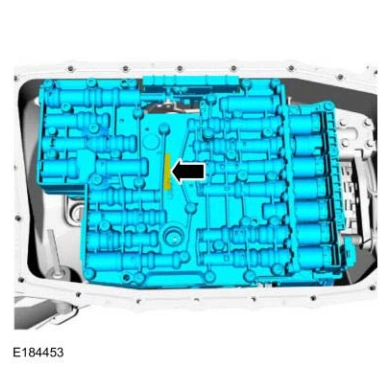

MAIN CONTROL SOLENOID BODY STRATEGY IDENTIFICATION

Transmission Description - Overview — original illustration 1, reference 8669Original colors & callouts · Select to enlarge

If the solenoid body strategy etched on the main control does not match what the scan tool displays, the solenoid body strategy must be downloaded into the PCM or harsh shifts will result.

DESCRIPTION AND OPERATION > TRANSMISSION DESCRIPTION - OVERVIEW >

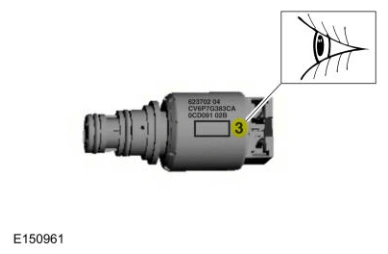

SOLENOID BAND NUMBER

Transmission Description - Overview — original illustration 2, reference 8669Original colors & callouts · Select to enlarge

The solenoids are calibrated from the factory and are not all the same. The solenoids can be replaced separately, but only with a replacement solenoid with a injector nozzle and band number that matches the solenoid being replaced. When solenoid(s) are replaced, the new solenoid band number must match the old solenoid band number. The band number is next to the two-dimensional matrix barcode on the side of the solenoid and will be a 1, 2, 3, 4 or 5.

DESCRIPTION AND OPERATION > TRANSMISSION DESCRIPTION - SYSTEM
