adjusts line pressure for temperature. | |
TR Sensor | The TR sensor has a 6-pin electrical connector. The TR sensor is located on the inside of the transmission at the manual control lever. The TR sensor sends a signal to the PCM to start the vehicle in PARK and NEUTRAL. The TR sensor opens/closes a set of 4 switches that are monitored by the PCM to determine the position of the manual control lever. |
TSS Sensor | This TSS sensor is a Hall-effect pickup that sends a signal to the PCM that indicates transmission turbine shaft input speed. The TSS information is compared to engine RPM to determine TSS performance. TSS is also compared to OSS to determine shift quality and clutch performance. |
OSS Sensor | The OSS sensor is a Hall-effect pickup, located on the transfer shaft drive gear, that sends a signal to the PCM to indicate transmission output speed. The OSS is used for shift scheduling. OSS is also compared to TSS to determine shift quality and clutch performance. |

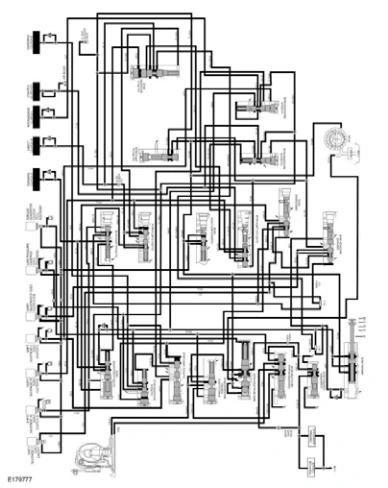

Hydraulic System Diagram
