Transmission Description - Overview — Original Solenoid Body Tag — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8667

maximum functional operation of the transmission with a minimum reduction in driver, passenger or vehicle safety. In the event of a total loss of control or electrical power, the basic transmission functions P, R, N and D are retained. Also 3rd or 5th gear is retained by the hydraulic system. The gear retained is dependent upon the gear selected at the time of the failure.

This transmission has an internal thermal bypass valve contained within the case.

DESCRIPTION AND OPERATION > TRANSMISSION DESCRIPTION - OVERVIEW >

IDENTIFICATION TAGS

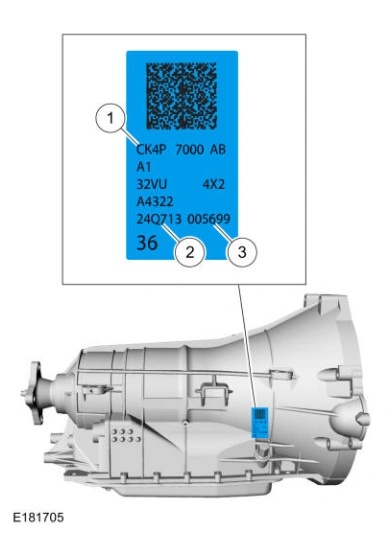

All vehicles come equipped with a Vehicle Certification Label. The location on the label marked TR is reserved for the transmission code. Refer to: IDENTIFICATION_CODES . All transmissions are equipped with an identification tag located on the transmission case. For transmission part number, serial number and build date, see the transmission identification tag located on the transmission case.

Transmission Description - Overview — original illustration 1, reference 8667Original colors & callouts · Select to enlarge

Item	Description
1	Part number
2	Build date
3	Serial number

DESCRIPTION AND OPERATION > TRANSMISSION DESCRIPTION - OVERVIEW >

ORIGINAL SOLENOID BODY TAG
