Intermediate plate

Stator shaft

The transmission fluid pump draws transmission fluid from the sump area, formed by the transmission fluid pan, through the transmission fluid filter, which is installed into the intermediate plate portion of the pump assembly and sealed by a rubber seal. A magnet attached to the transmission fluid pan collects any metallic material in the transmission fluid.

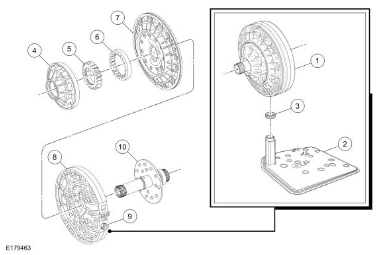

Pump Assembly and Transmission Fluid Filter Components

Torque Converter — original illustration 1, reference 8664Original colors & callouts · Select to enlarge

Item	Description
1	Transmission fluid pump assembly
2	Transmission fluid filter
3	Transmission fluid filter seal
4	Transmission fluid pump body
5	Inner (drive) gear
6	Outer (driven) gear
7	Centering plate
8	Intermediate plate
9	Filter suction port
10	Stator shaft

DESCRIPTION AND OPERATION > TORQUE CONVERTER

When the TCC is released, line pressure is supplied to the converter release regulator valve from the lubrication control valve through the CREL F circuit. The converter release regulator valve supplies fluid to the torque converter through the CREL circuit. Fluid exits the torque converter through the CAPLY circuit and goes to the bypass clutch control regulator valve. The bypass clutch control regulator valve directs the fluid back to the converter release regulator valve through the CAPLY EX circuit. The converter release regulator valve directs the fluid to the DBACK circuit where it supplies lubrication in the LUBE circuit.
