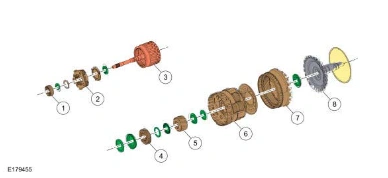

Planetary Gearset Exploded View

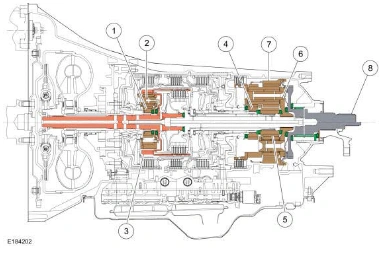

Item | Description |
|---|---|
1 | Front planetary No. 1 sun gear |
2 | Front planetary carrier |
3 | Front planetary ring gear (part of input shaft assembly) |
4 | Rear planetary No. 2 sun gear |
5 | Rear planetary No. 3 sun gear |
6 | Rear planetary carrier |
7 | Rear planetary ring gear |
8 | Output shaft |
Mechanical Components and Functions
Planetary Gearset
This transmission has 2 planetary gearsets (front and rear) to provide operation in reverse and 6 forward speeds.
The front planetary gearset is a single planetary gearset and has the following components:
Front planetary No. 1 sun gear
Front planetary carrier
Front planetary ring gear (part of the input shaft assembly)
The input shaft rotates the front ring gear as a driving member. The front sun gear is connected to the fluid pump and is held stationary. The front ring gear rotates the front planetary carrier assembly with a
