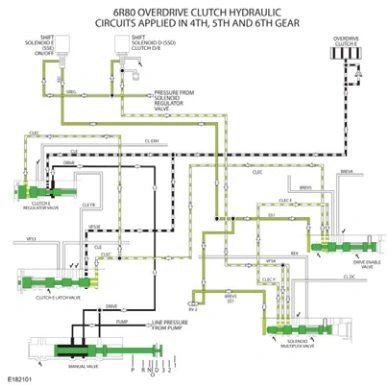

position the valves to direct pressure from the VFS4 circuit to the CLEC F and CLEC circuits to position the clutch E regulator and latch valves to apply the overdrive clutch.

The clutch E regulator valve provides regulated line pressure from the DRIVE circuit to the CLE circuit to apply the overdrive clutch.

Planetary Assembly — original illustration 1, reference 8661Original colors & callouts · Select to enlarge

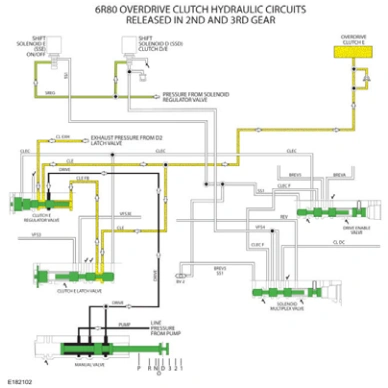

In 2nd, 3rd, 4th, 5th and 6th gear, the D2 Latch valve directs a small amount of fluid from the PUMP circuit the CL EXH circuit. When SSD is hydraulically off and the Manual Valve is in DRIVE, CLE circuits are filled with fluid from the CL EXH circuit under low pressure, (21kPa/ 3 PSI). This keeps air out of the CLE circuit resulting in a smooth shift into 4th gear.

Planetary Assembly — original illustration 2, reference 8661Original colors & callouts · Select to enlarge

DESCRIPTION AND OPERATION > PLANETARY ASSEMBLY

Planetary Gearset Cutaway View
