Overdrive Clutch Assembly — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8660

Main Control Valve Body Mechanical Operation

The main control consists of a valve body assembly with solenoids that are controlled by the PCM. The PCM operates the electrical components to provide refined engagement feel, shift feel, and shift scheduling.

DESCRIPTION AND OPERATION > OVERDRIVE CLUTCH ASSEMBLY

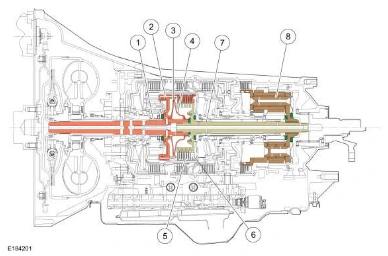

Overdrive (O/D) Clutch Cutaway View

Overdrive Clutch Assembly — original illustration 1, reference 8660Original colors & callouts · Select to enlarge

Overdrive Clutch Assembly — original illustration 2, reference 8660Original colors & callouts · Select to enlarge

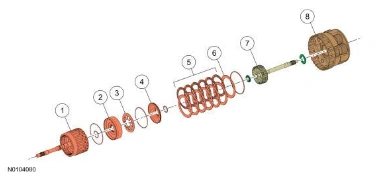

Overdrive (O/D) Clutch Exploded View

Item	Description
1	Input shaft assembly
2	Overdrive clutch piston
3	Overdrive clutch piston return spring
4	Overdrive clutch balance piston
5	Overdrive clutch friction and steel plates
6	Overdrive clutch pressure plate
7	Intermediate shaft
8	Rear planetary carrier assembly

To apply the overdrive clutch, the manual valve must be in the DRIVE position. Line pressure is supplied to the clutch E regulator valve.

SSD provides regulated solenoid pressure from the SREG circuit to the solenoid multiplex valve through the VFS4 circuit. SSE supplies pressure to the solenoid multiplex valve and the drive enable valve to
