Main Control Valve Body

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,657HTML edition
← Chapter contentsManual collection

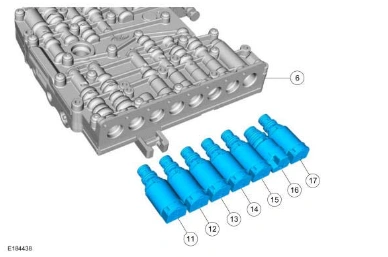

Main Control Valve Body — original illustration 1, reference 8657Original colors & callouts · Select to enlarge

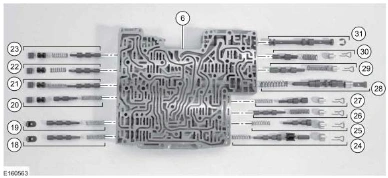

Main Control Valve Body — original illustration 2, reference 8657Original colors & callouts · Select to enlarge

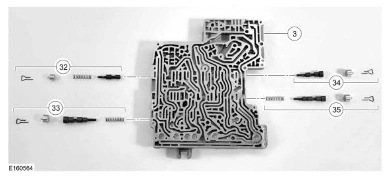

Main Control Valve Body — original illustration 3, reference 8657Original colors & callouts · Select to enlarge

1

Main control / Molded leadframe

2

Foam strip seal

3

Transmission control valve body (upper)

4

Transmission control valve check ball (8 required)

5

Transmission control valve body separator plate

6

Transmission control valve body (lower)

7

Transmission control valve assembly

8

Transmission control filter assembly

9

Transmission fluid filter

10

Transmission solenoid damper valve assembly

11

Solenoid A (SSA)

12

Solenoid B (SSB)

13

Solenoid C (SSC)

14

Line Pressure Control (LPC) solenoid

15

Shift Solenoid D (SSD)

16

Shift Solenoid E (SSE)

Ford_Mustang_all_2015-2017.pdf · source reference 8657
