Low One-Way Clutch Assembly — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8655

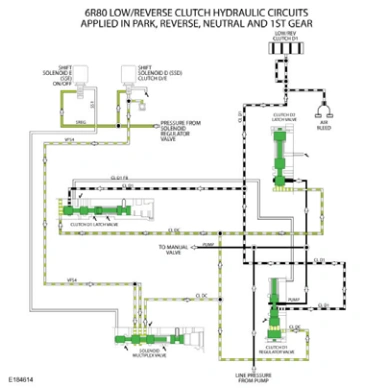

Low One-Way Clutch Assembly — original illustration 1, reference 8655Original colors & callouts · Select to enlarge

In 2nd, 3rd, 4th, 5th and 6th gear, the D2 Latch valve directs a small amount of fluid from the PUMP circuit the CL EXH circuit. When SSD is hydraulically off and the Manual Valve is in DRIVE, CLD1 circuits are filled with fluid from the CL EXH circuit under low pressure, (21kPa/ 3 PSI). This keeps air out of the CLD1 circuit resulting in a smooth downshift into 1st gear.

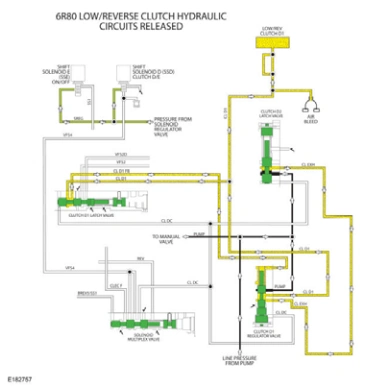

Low One-Way Clutch Assembly — original illustration 2, reference 8655Original colors & callouts · Select to enlarge

DESCRIPTION AND OPERATION > LOW ONE-WAY CLUTCH ASSEMBLY

Low One-Way Clutch Assembly — original illustration 3, reference 8655Original colors & callouts · Select to enlarge

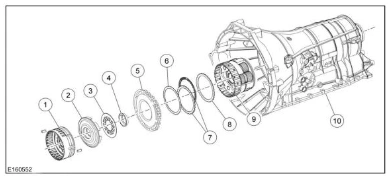

Low One-Way Clutch Exploded View

Item Description
