17 Torque Converter Clutch (TCC) solenoid 18 Forward (A) clutch latch valve assembly 19 Direct (B) clutch latch valve assembly 20 Solenoid regulator valve 21 Low/reverse (D1) clutch latch valve assembly 22 Drive enable valve 23 Solenoid multiplex valve 24 Forward (A) clutch regulator valve assembly 25 Overdrive (E) clutch regulator valve assembly 26 Overdrive (E) clutch latch valve assembly 27 Bypass clutch control regulator valve assembly 28 Main regulator valve assembly 29 Converter release regulator valve assembly 30 Lubrication control valve assembly 31 Manual valve assembly 32 Low/reverse (D2) clutch latch valve assembly 33 Direct (B) clutch regulator valve assembly 34 Low/reverse (D1) clutch regulator valve assembly 35 Intermediate (C) clutch regulator valve
Original table alignment retained · Scroll horizontally if needed

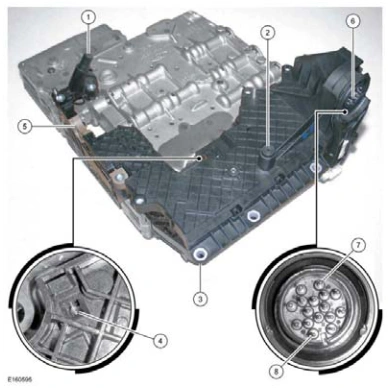

DESCRIPTION AND OPERATION > MAIN CONTROL VALVE BODY > MAIN CONTROL
VALVE BODY
Ford_Mustang_all_2015-2017.pdf · source reference 8658
