Intermediate Clutch Assembly — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8652

Intermediate Clutch Assembly — original illustration 1, reference 8652Original colors & callouts · Select to enlarge

DESCRIPTION AND OPERATION > INTERMEDIATE CLUTCH ASSEMBLY

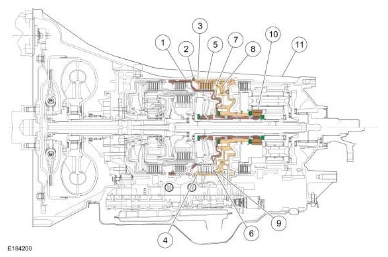

Intermediate Clutch Cutaway View

Intermediate Clutch Assembly — original illustration 2, reference 8652Original colors & callouts · Select to enlarge

Intermediate Clutch Assembly — original illustration 3, reference 8652Original colors & callouts · Select to enlarge

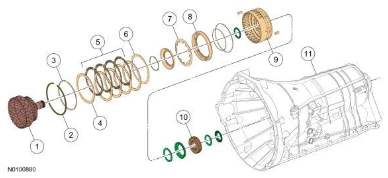

Intermediate (2, 6) Clutch Exploded View

Item	Description
1	Direct clutch (B) cylinder
2	Center support retaining ring
3	Intermediate clutch (C) pressure plate retaining ring (selective)
4	Intermediate clutch pressure plate
5	Intermediate clutch assembly (quantity model dependent)
6	Intermediate clutch plate spring
7	Intermediate clutch piston return spring

Ford_Mustang_all_2015-2017.pdf · source reference 8652

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
