In 2nd, 3rd, 4th, 5th and 6th gear, the D2 Latch valve directs exhaust circuit pressure from the CL EXH circuit to the CL B circuit to fill the circuit and the direct clutch (B) with fluid at low pressure, approximately 21 kPa (3 psi). This keeps air out of the Clutch B circuits resulting in smooth shifts when the clutch is applied in 3rd or 5th gear.

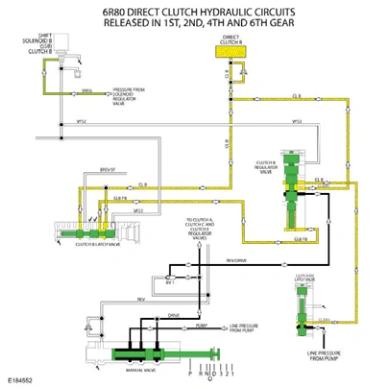

Direct Clutch (B) Released in 1st, 2nd, 4th and 6th Gear
Forward Clutch Assembly — original illustration 1, reference 8650Original colors & callouts · Select to enlarge

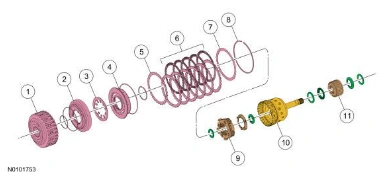

DESCRIPTION AND OPERATION > FORWARD CLUTCH ASSEMBLY

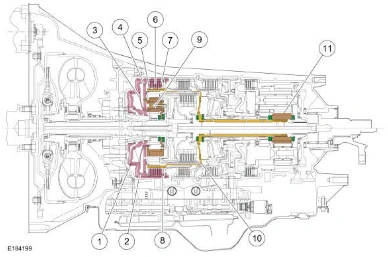

Forward Clutch Cutaway View
Forward Clutch Assembly — original illustration 2, reference 8650Original colors & callouts · Select to enlargeForward Clutch Assembly — original illustration 3, reference 8650Original colors & callouts · Select to enlarge
