DESCRIPTION AND OPERATION > DIRECT CLUTCH ASSEMBLY

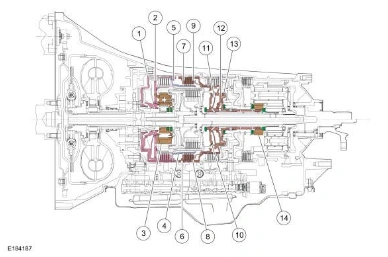

Direct Clutch Cutaway View

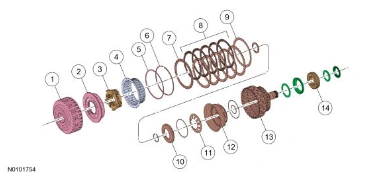

Direct Clutch Exploded View
Item | Description |
|---|---|
1 | Forward clutch (A) cylinder |
2 | Forward clutch balance piston |
3 | Front planetary carrier assembly |
4 | Direct clutch (B) hub |
5 | Direct clutch pressure plate retaining ring (selective) |
6 | Direct clutch pressure plate retaining ring (selective) |
7 | Direct clutch pressure plate |
8 | Direct clutch assembly (quantity model dependent) |
9 | Direct clutch cushion plate |
10 | Direct clutch balance piston |
11 | Direct clutch piston return spring |
12 | Direct clutch piston |
13 | Direct clutch cylinder |
14 | Rear planetary sun gear No. 2 |
Direct Clutch (B) Hydraulic Circuits
