Transmission Description - System Operation And Component Description — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8686

Front planetary gearset driven components:

Planetary carrier

Front planetary gearset held components:

Sun gear (splined to pump assembly)

Rear planetary gearset driving components:

None

Rear planetary gearset driven components:

None

Rear planetary gearset held components:

Planetary carrier

Ring gear (output shaft)

Park Position Clutch Application Chart

Gear	Forward A (1, 2, 3, 4)	Direct B (3, 5, R)	Intermediate C (2, 6)	Low/Reverse D (1, R)	Overdrive E (4, 5, 6)	Low-OWC
Park	-	-	-	H*	-	-
Planetary Components	Front planetary carrier- to-No. 3 sun gear	Front carrier- to-No. 2 sun gear	No. 2 sun gear	Rear planetary carrier	Input shaft- to-rear planetary carrier	Rear planetary carrier

* H = Hold Clutch

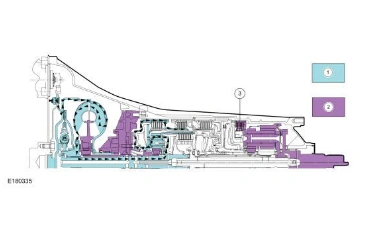

Park Position Power Flow

Transmission Description - Overview — original illustration 1, reference 8686Original colors & callouts · Select to enlarge

Item	Description
1	Driven Components
2	Held Components
