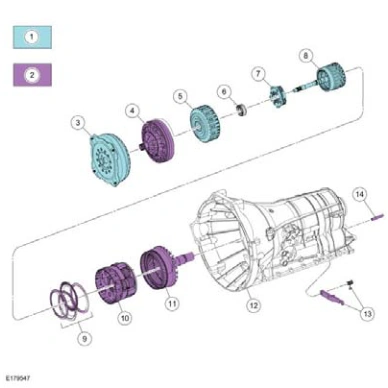

Item | Description |
1 | Driven Components |
2 | Held Components |
3 | Torque Converter |
4 | Pump Assembly |
5 | Forward Clutch Cylinder and Hub Assembly |
6 | Front Planetary Sun Gear (No. 1) |
7 | Front Planetary Carrier Assembly |
8 | Front Planetary Ring Gear Assembly (input shaft) |
9 | Low Reverse Clutch (D) Assembly |
10 | Rear Planetary Carrier |
11 | Rear Planetary Ring Gear and Output Shaft Assembly |
12 | Transmission Case |
13 | Park Pawl and Spring |
14 | Park Pawl Pin |
Mechanical Operation
Apply components:
Park pawl engaged holding the park gear (output shaft) stationary
Low/reverse clutch (D) applied
Planetary Gearset Operation
Front planetary gearset driving components:
Ring gear (input shaft)
