Clutch hydraulic circuits:
Line pressure is supplied by the pump to the D1 latch and regulator valves.
Regulated line pressure from the D1 regulator valve is supplied to the low/reverse clutch (D) to apply the clutch.
Electrical Operation
Solenoid operation:
Selector Lever Position | PCM Commanded Gear | SSA NL (1, 2, 3, 4) | SSB NH (3, 5, R) | SSC NL (CB 2, 6) | SSD NH (CB L/R 4, 5, 6) | SSE NC | TCC NL |
|---|---|---|---|---|---|---|---|
P | P | Off | On | Off | On | On | Off |
CB = Clutch brake, NC = Normally closed, NH = Normally high, NL = Normally low
For solenoid information, Refer to: Main Control Valve Body .

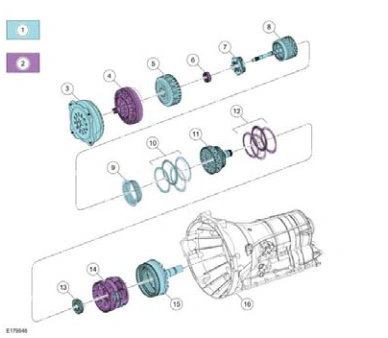

Reverse Position
Item | Description |
1 | Driven Components |
2 | Held Components |
3 | Torque Converter |
4 | Pump Assembly |
5 | Forward Clutch Cylinder and Hub Assembly |
6 | Front Planetary Sun Gear (No. 1) |
